Citroen 2cv tools
                                  IGNITION TIMING TOOL.  Cit2cv003
          next
CLICK THE PHOTO TO RETURN TO THE TOOL BOX

TIMING TOOL


TRACK ROD END CUP NUT TOOL


OIL COOLER UNION SPANNER

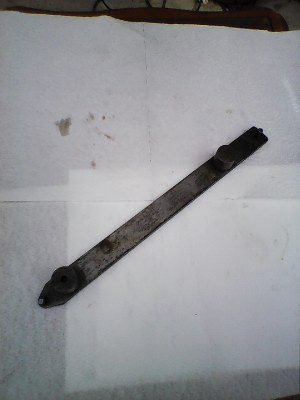

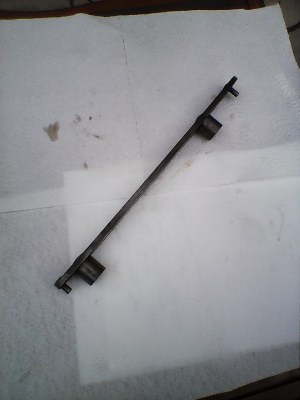

THE TIMING TOOL IS AT THE TOP OF THE PHOTOGRAPH.

THE IGNITION TIMING TOOL  (6MM DIAMETER) FITS INTO THE HOLE IN THE CRANKCASE BEHIND THE OIL LEVEL DIPSTICK TUBE.
ROTATE THE ENGINE UNTIL A HOLE IN THE FLYWHEEL CORRESPONDS WITH THE PROTRUDING TOOL. INSERT TOOL INTO FLYWHEEL HOLE.
THE ENGINE IS NOW AT THE STATIC IGNITION POINT.
FOR 602 ENGINE.  8 DEGREES BEFORE TOP DEAD CENTRE.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
